Hydraulic Scraper System

Alfco Hydraulic Scraper System

The Alfco Slurry Scraper will scrape cubicle and feed passages of various widths. Up to six passages can be operated on one powerpack and control panel.

One Rambox is installed at the end of each passage and a double acting Ram moves the central draw bar back and forth. The scraper is fitted with a mechanism that moves it forward with each stroke. At the end of the track the Scraper automatically reverses to its parking position, where a switch turns off the hydraulic oil supply.

get a quote

Description

Hydraulic Scraper Components

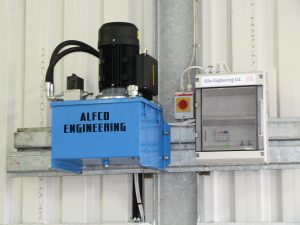

Power Unit

• Special Heavy Duty hydraulic pump with high efficiency low noise level
• Custom Made hydraulic oil filter, to reduce any dirt in the oil and to increase the life of the hydraulic system
• Soft turning changeover valve gives smooth operation with no disturbance to the cows
• Easy adjustable turning pressure for individual plant control

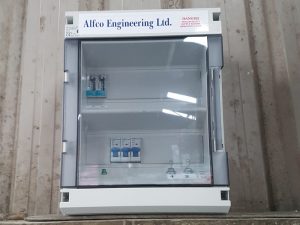

Control Panel

• Manual or fully automatic operation
• Manual operation – Each Passage can be started manually and when the scraper completes its cycle it returns to the home position and parks.
• Automatic operation – Each passage will start automatically at preselected intervals using a 24hr clock and when the scraper completes its cycle it returns to the home position and parks.

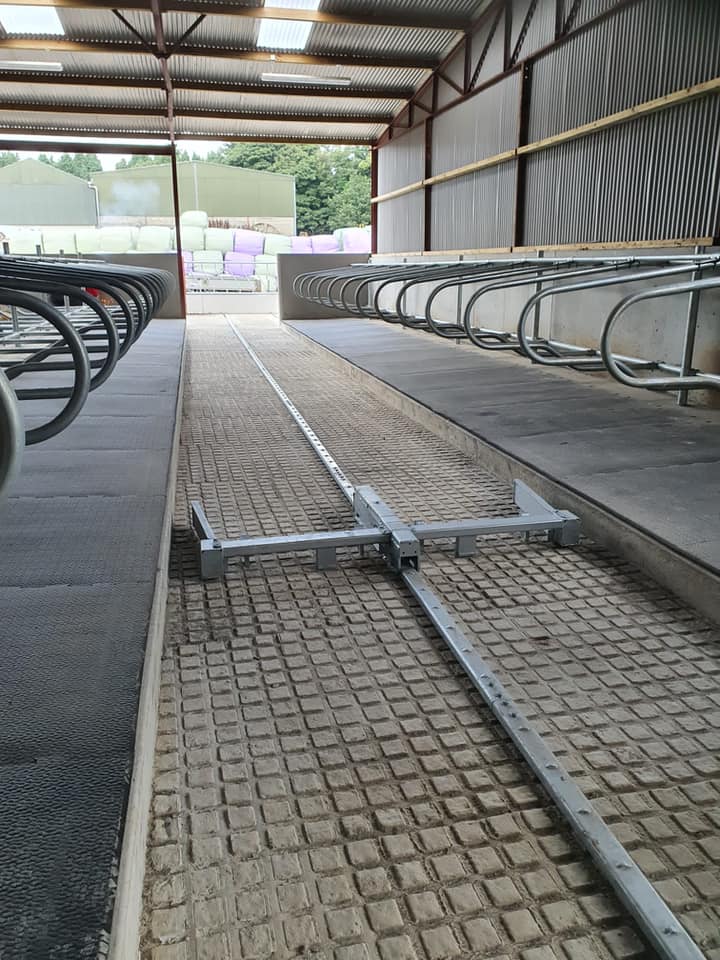

Passage Scraper Blade

• Robust all galvanised construction and animal friendly design
• Built in safety trip mechanism ensures that the scraper returns to its parking position if passage is blocked.
• Floating blades give excellent cleaning and first class hygiene results.
• Blade constructed from 12mm steel with 20mm heels for long life.

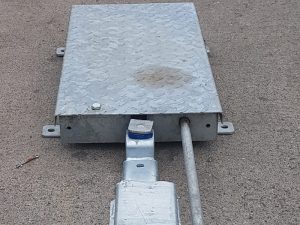

Rambox

• Long and short rambox available for maximum flexibility
• Unique parking switch for positioning the scraper at the end of each passage
• All Galvanised
• Separate cylinder cover facilitated inspection and easy service
• Glanded Junction Box

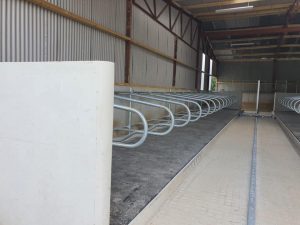

Track

• Cow friendly Design with curved notches
• 5mm all galvanised steel after manufacturing.
• Guide bracket every 1500mm

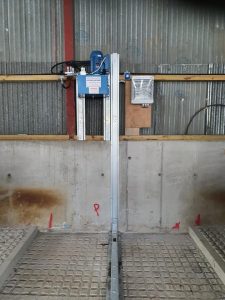

Undertrack Ram Assembly

• Allows blade to park close to wall, resulting in cleaning of full passage
• Causes no obstruction in passage or doorway
• Suitable for all types of shed designs
• Unique sensor parking system.

Technical Data

Cylinder – 45/30 x 500mm
Scraper Height – 175mm effective
Passage Length – Max. 120m
Passage Width – 1.6 – 5.0m
Clearance under slatted floor – Min. 300mm
Powerpack – 1.5Kw – 2.2Kw
Rambox Long – 115 x 300 x 1250 mm
Rambox Short – 115 x 300 x 650 mm
